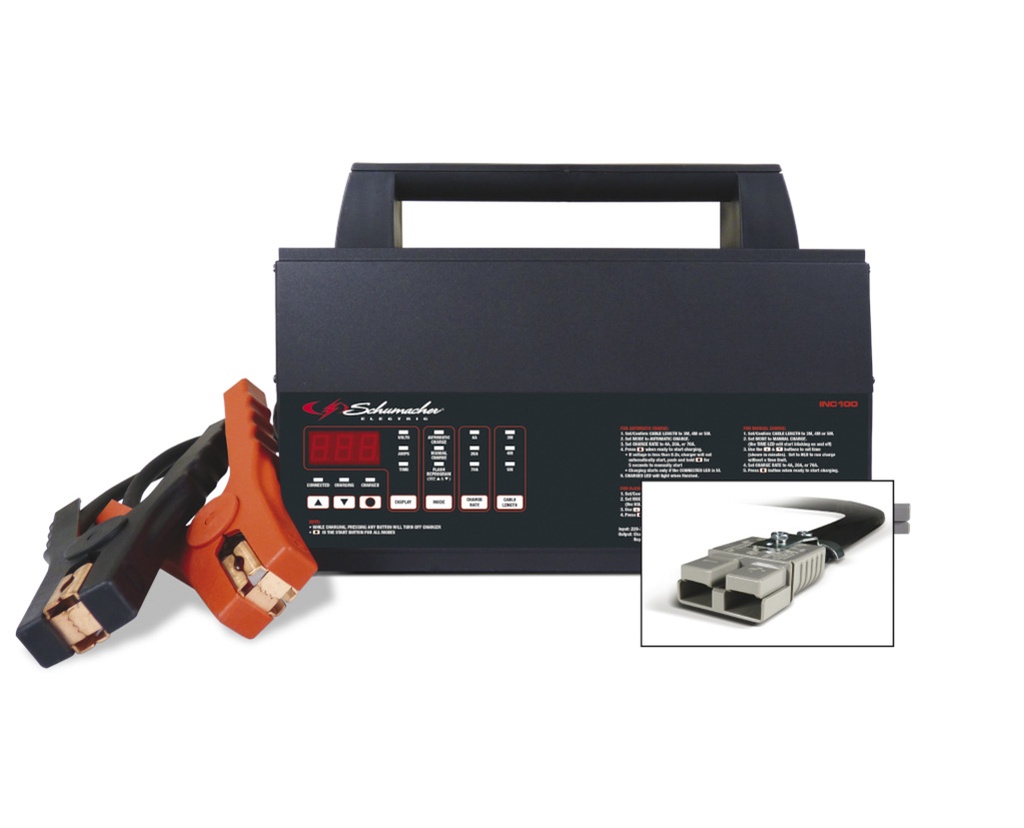

CHARGE, MAINTAIN AND SUPPORT BATTERIES DURING DIAGNOSTIC WORK
- Fully automatic & microprocessor-controlled battery charger for batteries of any size: lead-acid, AGM, calcium, start/stop & Gel.
- Three selectable modes:
- Automatic: up to 70A charging current
- Manual: variable charge rates (4/20/70 Amps) and digital timer
- Flash Reprogram: maintains stable voltage under varying loads during ECU reprogramming and diagnostic work. Voltage can be set between 13.0-14.8V. Features 70A continuous and 100A Peak (3 minutes) output current.
- Can also be used to maintain the battery of vehicles sitting in Showrooms.
- Recovery mode for deeply discharged & sulphated batteries included
- Digital display shows voltage and output current
- 5-meter cables equipped with heavy-duty clamps and Anderson connector
- Adjustable mounting brackets for permanent installation to most vehicle lifts
- Durable aluminum case
- Dual temperature-controlled cooling fans
- Short-circuit and thermal runaway protection
| SPECIFICATIONS | |
|---|---|
| Battery Type | Lead-acid, AGM, Gel, Calcium, Start-Stop |
| Input Voltage | 230V AC |
| Output Voltage | 13.0-14.8V |
| Output Current | 4/20/70A |
| Dimensions (cm) | 32.4 x 10.8 x 23.5 |
| Weight (kg) | 7.5 |
